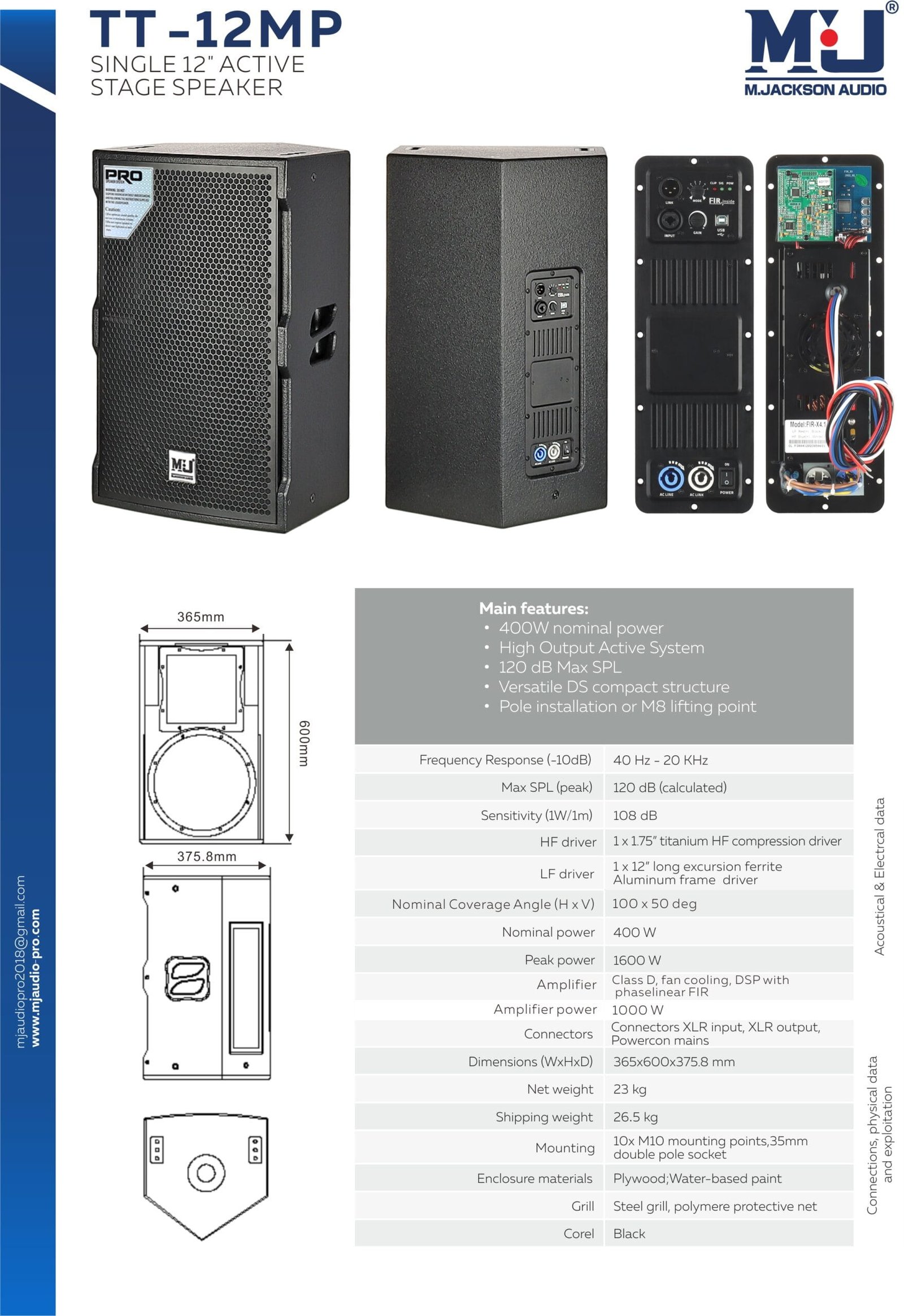

| Model | AS-TT12MP |
| Frequency Range (Hz) | 40Hz-20kHz(+5dB) |
| Dimension (L x W x H) | 365x600x375.8mm |
| Mounting | 10x M10 mounting points,35mm double pole socket |
| HF | 1×1.75″ titanium HF compression driver |
| LF | 1 x 12″ long excursion ferrite Aluminum frame driver |
| Sensitivity | 120 DB |
| Maximum SPL | 108db |
| Connection | 2xNL4 Speakon |
| Material | Plywood |
| Net Weight | 23kg |
| Amplifier Mode | CLASS D,fan cooling, DSP withphaselinear FIR |
| Amplifier POWER | 1000W |
High quality MDF
all MDF products use high-quality high-density MDF. The board density is all 720 density. Low formaldehyde emission.
Surface paint process
We use water-based environmental protection paint. The whole painting process is divided into three steps. 2 primer coats, 1 top coat. Make the paint of the speaker look fuller and thicker.

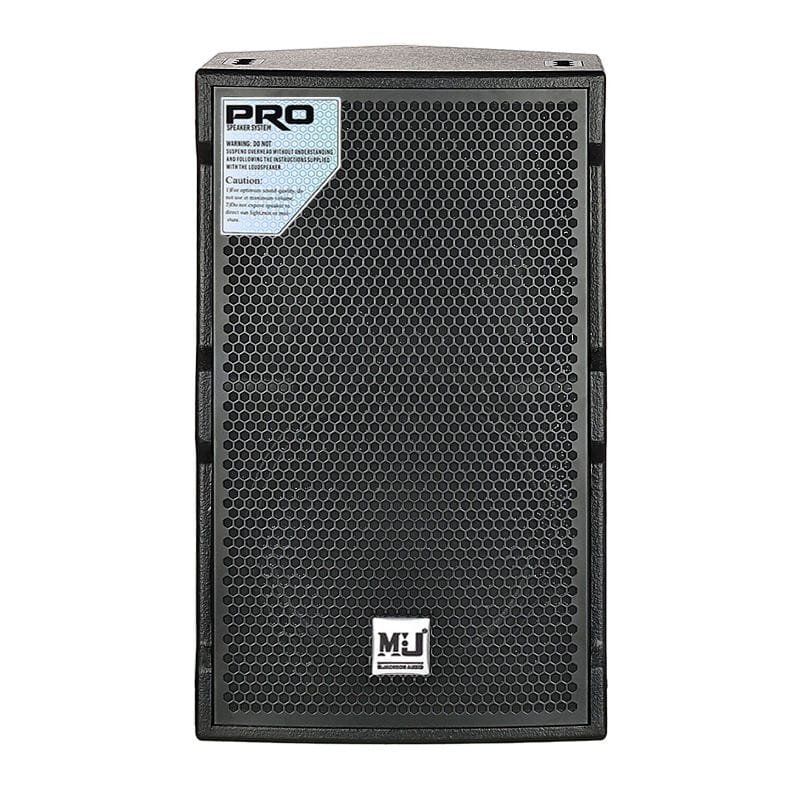

High quality hardware
Adopt 1.2mm national standard iron mesh. Surface Powder Injection Process. Tough and not easy to deform. A mesh dustproof cloth is pasted inside to better protect the speakers.Special design–The unique grille design is very strong, dent resistant.

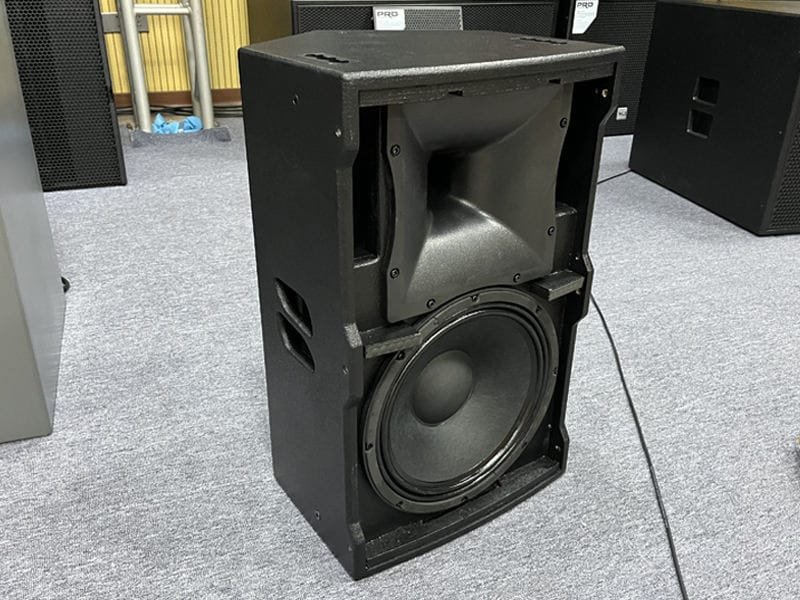

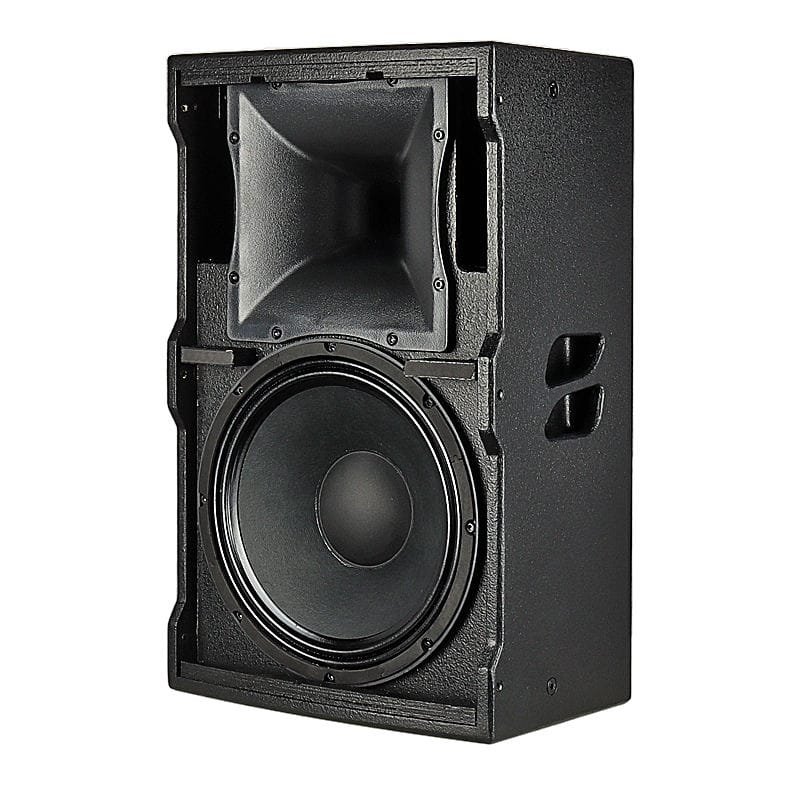

Loudspeakers
The AS-TT12MP uses a 1.75″ titanium HF compression driver. 12″ long excursion ferrite Aluminum frame driver. The high frequency is clear and bright without noise. The intermediate frequency is thick and does not drag.
