Features:

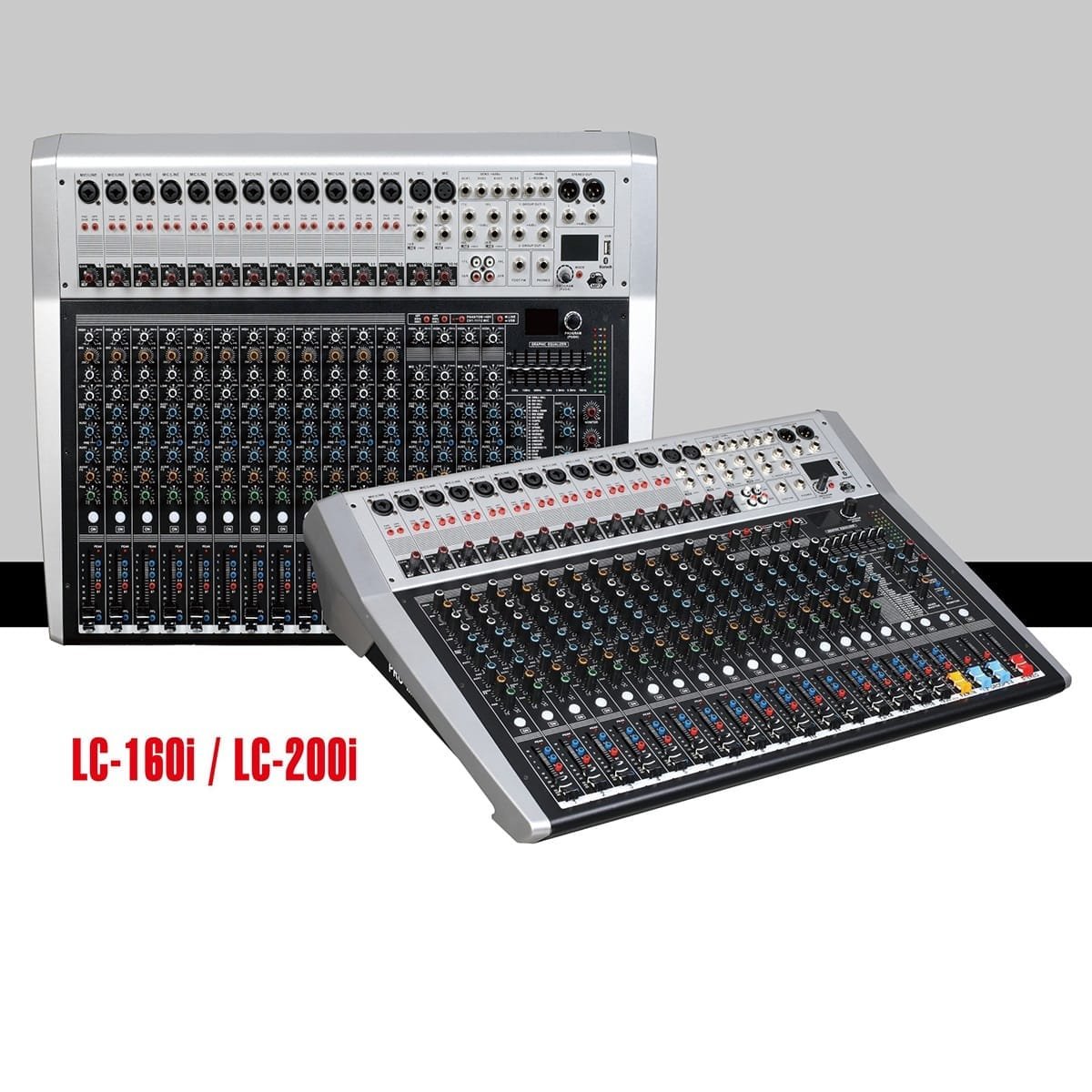

1.1-12 mono channels and 4 stereo channels inputs for LC-160i;
2.High quality, low noise balanced mic input
3. high quality +48V phantom power for each channel mic
4.3 bands EO,HM and LM swept,with England style
5.groups of AUX output,optional for pre fader(retrm) or post fader
6.High accurate three color level column, to display output level exactly
7.70MM high precision handspike POT attenuator
8.Built-in 99 DSP processor
9. seven-segment stereo devices
10.Built in squelch switch power source supply,more flexible and convenience
| Model | LC-160i | LC-200i | LC-240i |
| Line Channel | 16CH | 20CH | 24CH |
| MIC | 16 | 20 | 24 |
| Channel EQ | 3 BAND+1 PREQ | |
| AUX Output | 4 | |
| Return | 1 | |
| EFFECT | 99 dsp effects | |
| Main EQ | 7-BAND | |
| Main OUT | 4 Stereo | |
| Total harmonic distortion | < -0.1 % | |
| Frequency response | 20Hz-20KHz +1 dB /-3dB | |
| S/N | -75db | |
| Resi dual output noise | <-80dBu | |
| Gain control | MIC 35dB(20dB-60dB) Line 20dB(20dB-60dB) | |
| Hea dphone output power | 150mW(1 KHz,THD=0.5%,200 Ω | |
| Maximum output level | 18dBm(1KHz,THD=0.5%) | |
| Power consumption | 35W | |
